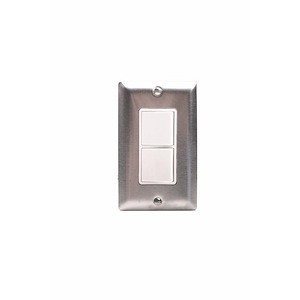

Innova - EFSWP - Single Duplex Switch Wall Plate and Gang Box - 20 Amp Per Pole

If you are looking for a simple control solution for your heaters, the Innova duplex switches are the way to go! The Innova switch line has undergone extensive testing and the switches are designed to provide the ability to control the heat output for each heating element independently; This functionality will provide real time HI/LO control for each element on Innova heaters. If you have any questions or installation concerns, please reach out to our knowledgeable sales teams prior to purchasing.

The Innova switches are built to pair seamlessly with all dual element Innova heaters. In the rare event that a switch is either defective during the warranty period or not compatible with your heater, we will happily replace it at no charge. Our return policy for Innova switches is to provide you a credit that can be applied towards a future purchase.

Features:

• Choose from a variety of control configurations, including In-Wall or Surface Mount options, many available with or without weatherproof covers.
• Single pole single throw switch (2 switches in total).
• Made in the USA
• 3 Year Warranty
• Range: 120/277 VAC

Recommended not to exceed:

• 208/220 VAC = 3000 Watts Max per Switch
• 240/277 VAC = 4000 Watt Max per Switch

Rated for 20 amps per pole

• EX: 6,000w at 240v = 25 amps
• 12.5 amps on top switch
• 12.5 amps on bottom switch

Product Dimensions:

• Gang Box: 4" h x 2 1/8" w x 1 7/8" d
• Faceplate: 4 7/8" h x 3 1/8" w

How does it work:

• The top switch will correspond to element A in the heater and the bottom switch will correspond to element B in the heater.
• The top and bottom switches can both handle up to 20 amps per pole

These switches are not weatherproof and must be installed under protective cover free from direct rain exposure. For spaces that are unprotected from direct exposure, you will need a switch with a Weatherproof Cover.

Single Heater Combo

Dual Heater Combo


What's Included

• Stainless steel or white faceplate
• Gang box
